Fast Variadic Mesh Booleans in C++

trueform extends mesh booleans to variadic CSG: boolean expressions over N meshes evaluated against a single implicit arrangement. Build the arrangement once, extract any union, intersection, or difference of any subset of operands. Adding another expression on the same N meshes pays only the extraction cost.

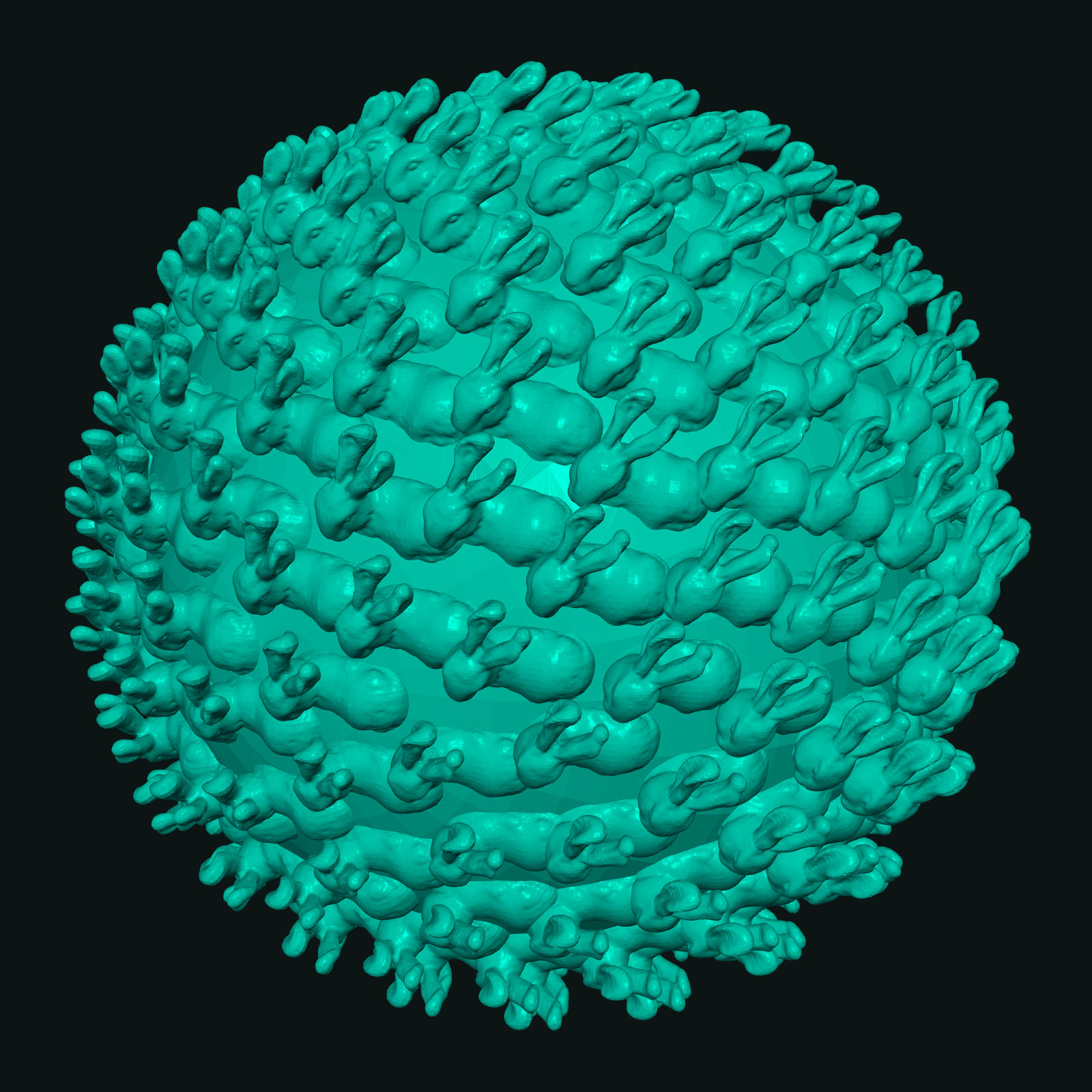

We follow the Lévy 2025 Fibonacci-bunny scene (cover figure of arXiv:2405.12949): a sphere with N Stanford Bunnies arranged on its surface via the Fibonacci lattice, oriented +Z radially outward. At N = 200 that's ~22.5M input triangles. From one CSG graph we extract both the variadic union sphere ∪ (⋃ bunnies) (11.7M triangles out) and the variadic difference sphere ∖ (⋃ bunnies) (7.9M triangles out).

One graph. Many extractions.

Apple M4 Max 16 threads Clang -O3 mimalloc

Loading the meshes

Include trueform:

#include <trueform/trueform.hpp>

Load the canonical sphere and bunny:

auto sphere = tf::make_sphere_mesh(2.5f, 32, 32);
auto bunny  = tf::cleaned(
    tf::read_stl("Stanford_Bunny.stl").polygons(),
    tf::epsilon<float>);

Each mesh is read once. The bunny is instanced N times via tagged transformations — no geometry is duplicated.

Tagging the canonical meshes

Pre-tag each canonical mesh with face membership, manifold edge link, and an AABB tree. Every instance shares the same tagged structures — the arrangement build reuses them across all N instances:

auto tag_all = [](auto &m) {
  auto fm  = tf::make_face_membership(m.polygons());
  auto mel = tf::make_manifold_edge_link(m.polygons() | tf::tag(fm));
  auto tr  = tf::aabb_tree<int, float, 3>(m.polygons(), tf::config_tree(4, 4));
  return std::tuple{std::move(fm), std::move(mel), std::move(tr)};
};

auto [b_fm, b_mel, b_tr] = tag_all(bunny);
auto [s_fm, s_mel, s_tr] = tag_all(sphere);
auto bunny_tagged  = bunny.polygons()  | tf::tag(b_fm) | tf::tag(b_mel) | tf::tag(b_tr);
auto sphere_tagged = sphere.polygons() | tf::tag(s_fm) | tf::tag(s_mel) | tf::tag(s_tr);

Distributing instances

Distribute N frames over the sphere using the Fibonacci lattice. Each instance is the canonical bunny with a tagged frame — same geometry, different pose:

constexpr int N = 200;
const float golden = (1.0f + std::sqrt(5.0f)) / 2.0f;

std::vector forms{
    sphere_tagged | tf::tag(tf::transformation<float, 3>{}),
};
for (int i = 0; i < N; ++i) {
  const float z  = 1.0f - (2.0f * i + 1.0f) / N;
  const float r  = std::sqrt(1.0f - z * z);
  const float th = 2.0f * tf::pi<float> * i / golden;
  tf::vector<float, 3> pos{2.5f * r * std::cos(th),
                           2.5f * r * std::sin(th),
                           2.5f * z};
  forms.push_back(bunny_tagged | tf::tag(
      tf::make_transformation_from_translation(pos)));
}

One canonical bunny + N frames: instancing without copying geometry.

Building the CSG graph

A CSG computation has three pieces:

• A tf::csg_graph — the implicit arrangement of N forms, built once
• A tf::csg::expr — a runtime boolean expression over operand ids
• An extraction call: tf::make_csg_mesh(graph, expr)

Build the graph over the forms range:

auto graph = tf::make_csg_graph(tf::make_range(forms));

Operand ids are positions in the forms range — 0 is the sphere, 1..N are the bunnies.

Boolean expressions

Expressions are built from tf::csg::merge, tf::csg::intersection, tf::csg::difference, tf::csg::complement, and tf::csg::any_of / tf::csg::all_of for ranges. Integers auto-promote to leaves, so the algebra reads like algebra.

For N operands, csg::any_of over a sequence range encodes ⋃; csg::all_of encodes ⋂.

Union: sphere ∪ (⋃ bunnies)

auto bunnies = tf::csg::any_of(tf::make_sequence_range(1, N + 1));

auto union_mesh = tf::make_csg_mesh(graph, tf::csg::merge(0, bunnies));

Difference: sphere ∖ (⋃ bunnies)

auto diff_mesh = tf::make_csg_mesh(graph, tf::csg::difference(0, bunnies));

Intersection: sphere ∩ (⋃ bunnies)

auto inter_mesh = tf::make_csg_mesh(graph, tf::csg::intersection(0, bunnies));

Many expressions, one graph

The arrangement is the cost. Once graph is built, every additional expression runs without re-arranging:

auto union_mesh = tf::make_csg_mesh(graph, tf::csg::merge(0, bunnies));
auto diff_mesh  = tf::make_csg_mesh(graph, tf::csg::difference(0, bunnies));
auto inter_mesh = tf::make_csg_mesh(graph, tf::csg::intersection(0, bunnies));

N-ary boolean trees that would otherwise chain pairwise extractions evaluate in one pass.

Higher precision

The lattice resolution resolves automatically from input scalar (float → int32, double → int64). Override for meshes spanning very large coordinate ranges:

auto graph = tf::make_csg_graph<tf::exact::int64>(tf::make_range(forms));

Output coordinate type is independent:

auto out = tf::make_csg_mesh<double>(graph, expr);

The arrangement carries exact intersection points regardless of the output type. Materialisation to IEEE float crosses the precision boundary exactly once.

Performance

Lévy Fibonacci-bunny benchmark. Stanford bunnies arranged Fibonacci-style on a sphere (R = 2.5), oriented +Z radially outward; sphere ∖ (⋃ bunnies) (difference) and sphere ∪ (⋃ bunnies) (union).

Comparison

Output meshes are closed and 2-manifold on every cell; volumes agree to within ~0.05% across libraries.

Breakdown

The arrangement is the cost. Each extraction is ~10% of the build.

From one graph, both booleans cost the arrangement plus small extraction overhead. Additional expressions on the same N meshes pay only the extraction cost. Three expressions on 200 meshes run in ~810 ms; rebuilding the arrangement three times would cost over 2,000 ms.

Full benchmarks and methodology · How the algorithm works · The STL for Geometry
